| Label |
|
Label for the group, this is seen by the user when editing. |
| Hint |
|
Hint for the group, this is seen by the user when editing as a tooltip. |
| Minimum occurances |
|
Minimum number of repeats required by this group |
| Maximum occurances |
|
Maximum number of repeats required by this group, if -1 then any number of repeats are accepted. |
| Foreign key |
|

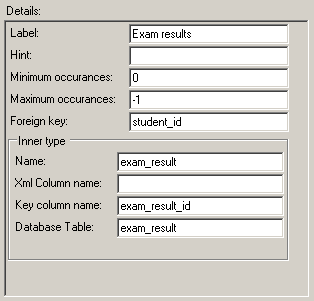

Foreign key for the group, defines the column in the group table which links back to the parent table. In the example shown the student_id is in the exam_result table, and foreign keys back to the student table. |
| Inner type: name |
|
Name of the inner type. |
| Inner type: XML column name |
|
Name of the database column which contains the XML blob for in the group table. In the example shown it would be a column in the exam_result table, but in this case it is blank because no XML storage is used. |
| Inner type: Key column name |
|
Name of the database column in the group table which stores the primary key. |
| Inner type: Database table |
|
Name of the database table in which entries in this group are stored. Blank if the group is to be stored in the parent XML blob. |
